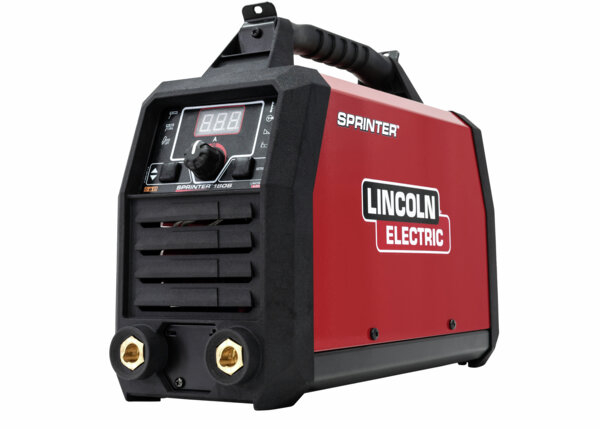

INVERTOR SUDURA SPRINTER 180S

GAMMA_SPRINTER_S__IT.pdf

MANUAL_DE_UTILIZARE_IM3210rev01-RO.pdf

Specifications
Inputs & Outputs
Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 120/230V +/-15% /1Ph
Weights & Dimensions
Dimensions (H x W x D) 162 mm x 305 mm x 438 mm
Net Weight 8.4 kg
Technical Specifications
Machines Processes Stick (SMAW)
Open Circuit Voltage 65V
Input Voltage 120/230V +/-15% / 1Ph
Input Current 16A
Input Hertz 50 Hz
Input Phase 1 ph
Mode Icon CC
Output Range 20-180
Polarity DC
Warranty
Warranty 3 years

DETAILS
This machine is more than just a stick welder, the Sprinter S combines superior stick functionality with DC LIFT TIG mode and dual input voltage (120V/230V). A simple display, allows you to select welding settings quickly, with the ability to start any job anywhere, whether it’s maintenance work, light fabrication, light construction and everything in between

Features
DUAL INPUT VOLTAGE – 120V and 230V, enabling you to plug into any common power supply.
READY TO USE VERSION – Available also as a Pack version with durable suitecase and telescopic arm, power source, welding cables, welding gloves and small pack of electrodes.
HOT START – This is a temporary increase in the initial welding current, to helping ignite the arc quickly and reliably.
ARC FORCE helps to increase penetration and prevent electrodes from sticking.
MULTI-PROCESS CAPABLE – Welds DC stick and DC Lift TIG.
LIGHTWEIGHT PORTABILITY – weighing under 9 kg this durable machine is easy to carry with either the ergonomic handle or shoulder strap.
TWO STICK MODES – Dedicated E6010 and E7108 weld modes allow for greater welding versatility and superior performance.
PFC – Resistant to power fluctuations, even while working on long extension cables up to 100m, without effecting welding capability and quality.
